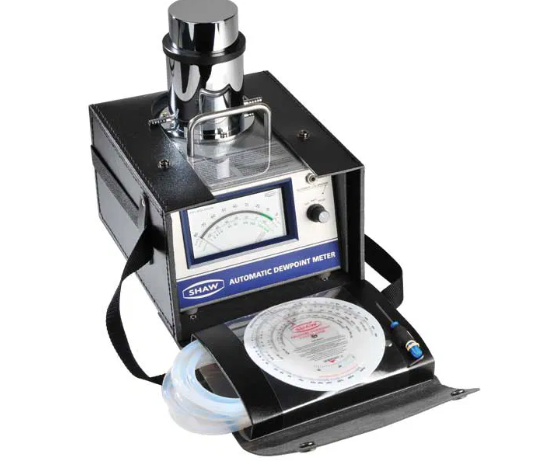

SADP Portable Hygrometer

Trace Moisture Dew Point Measurement

The SADP Portable Hygrometer is a reliable handheld instrument designed for both quick spot checks and routine monitoring of trace moisture in gases and compressed air. The unit provides clear readings of dew point temperature and water vapour concentration down to below one part per million, displayed on a large, easy-to-read analogue dial.

Because the instrument measures water vapour directly, it provides dependable results across a variety of gases without requiring complex correction factors. The SADP is specifically engineered to operate at atmospheric pressure, delivering measurement accuracy capable of detecting extremely small amounts of moisture in very dry gas streams.

High-performance sensor and rapid response

The performance of the SADP hygrometer is built around three key elements working together:

• A desiccant dry-down chamber

• A highly sensitive aluminium oxide dew point sensor

• The integrated AutoCal calibration verification system

This combination ensures the instrument responds quickly when moving between dry and moist gas conditions. The high-capacitance aluminium oxide sensor provides excellent stability, dependable operation and long-term measurement reliability.

Designed for simple and convenient operation

The SADP hygrometer is ideal for fast on-site moisture checks where portability and speed are important. The integrated desiccant assembly allows the sensor to return rapidly to a dry reference condition, enabling efficient measurement with minimal gas consumption.

Unlike more complex moisture measurement systems, the SADP features a straightforward operating design. There are no complicated controls for cooling, calibration or maintenance, allowing engineers and technicians to obtain reliable readings quickly and easily.

AutoCal on-site verification

The built-in AutoCal function allows users to confirm and adjust the instrument span directly on site without requiring external calibration equipment. This capability helps maintain measurement confidence between scheduled laboratory calibrations.

The system works by allowing the sensor to reach saturation at its designed maximum moisture level. When exposed to moisture above its operating range, the sensor stabilises and stops responding to further increases in water vapour. This controlled behaviour provides the reference point used for AutoCal verification.

Using AutoCal periodically helps to:

• Reduce instrument downtime

• Lower routine calibration costs

• Provide immediate performance verification

While AutoCal can be performed every few months if required, annual laboratory calibration against a certified reference standard is still recommended to maintain full traceability.

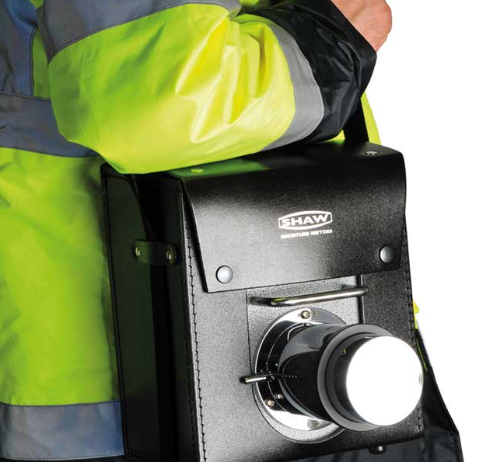

Portable, self-contained and suitable for hazardous areas

The SADP is a fully self-contained portable dew point meter, allowing technicians to perform quick spot measurements with minimal setup. The instrument is approved for use in hazardous environments and carries ATEX and IECEx intrinsic safety certification, together with CE and UKCA compliance.

Thanks to its accuracy, durability and ease of use, the SADP hygrometer is widely used across industries such as:

• Power generation

• Semiconductor manufacturing

• Pharmaceutical production

• Gas processing and compressed air systems

It remains a trusted solution for portable trace moisture measurement in gases and dry air systems.

Key Features

• Handheld portable dew point hygrometer

• Guaranteed dew point accuracy of ±3 °C to ±4 °C (±5.4 °F to ±7.2 °F)

• Intrinsic safety approvals: ATEX Ex II I G Ex ia IIC T6 Ga and IECEx Ex ia IIC T6 Ga

• Certified CE and UKCA compliant for hazardous area use

• Measurement ranges available from -100 °C to +20 °C dew point (-148 °F to +68 °F)

• Optional extended range for 0–10 ppm moisture (TR version)

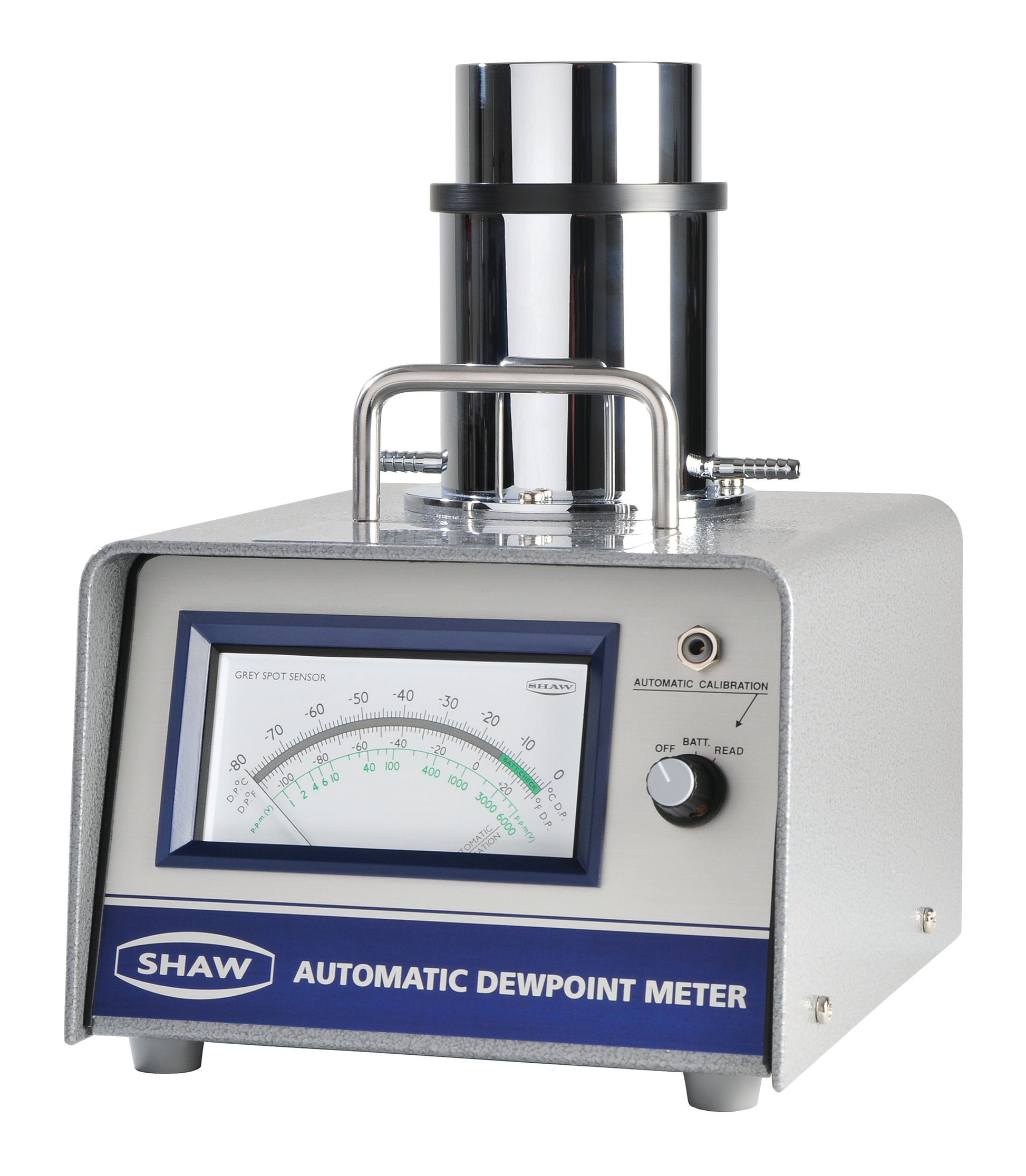

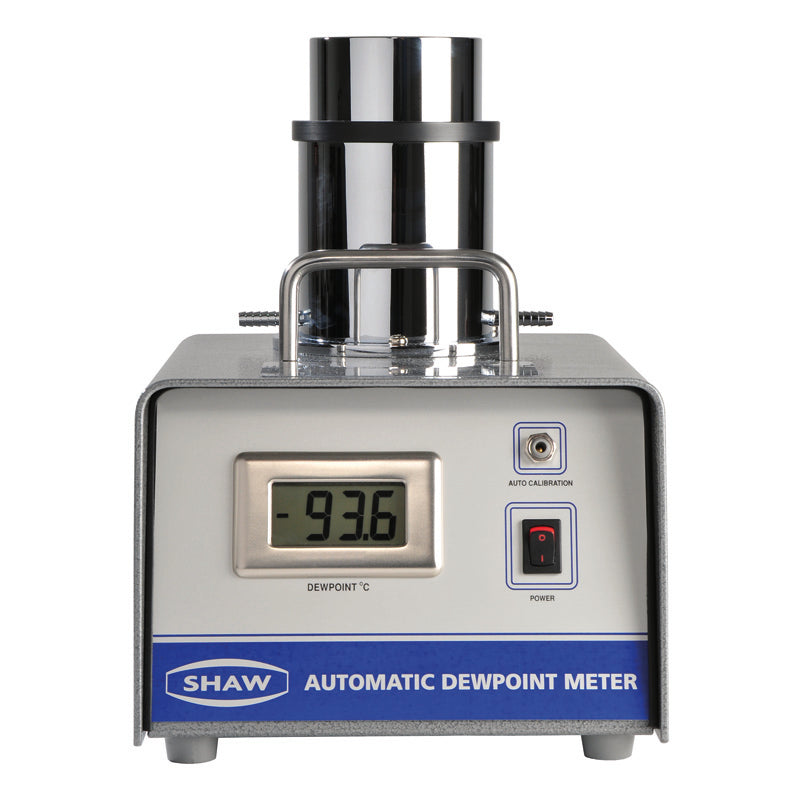

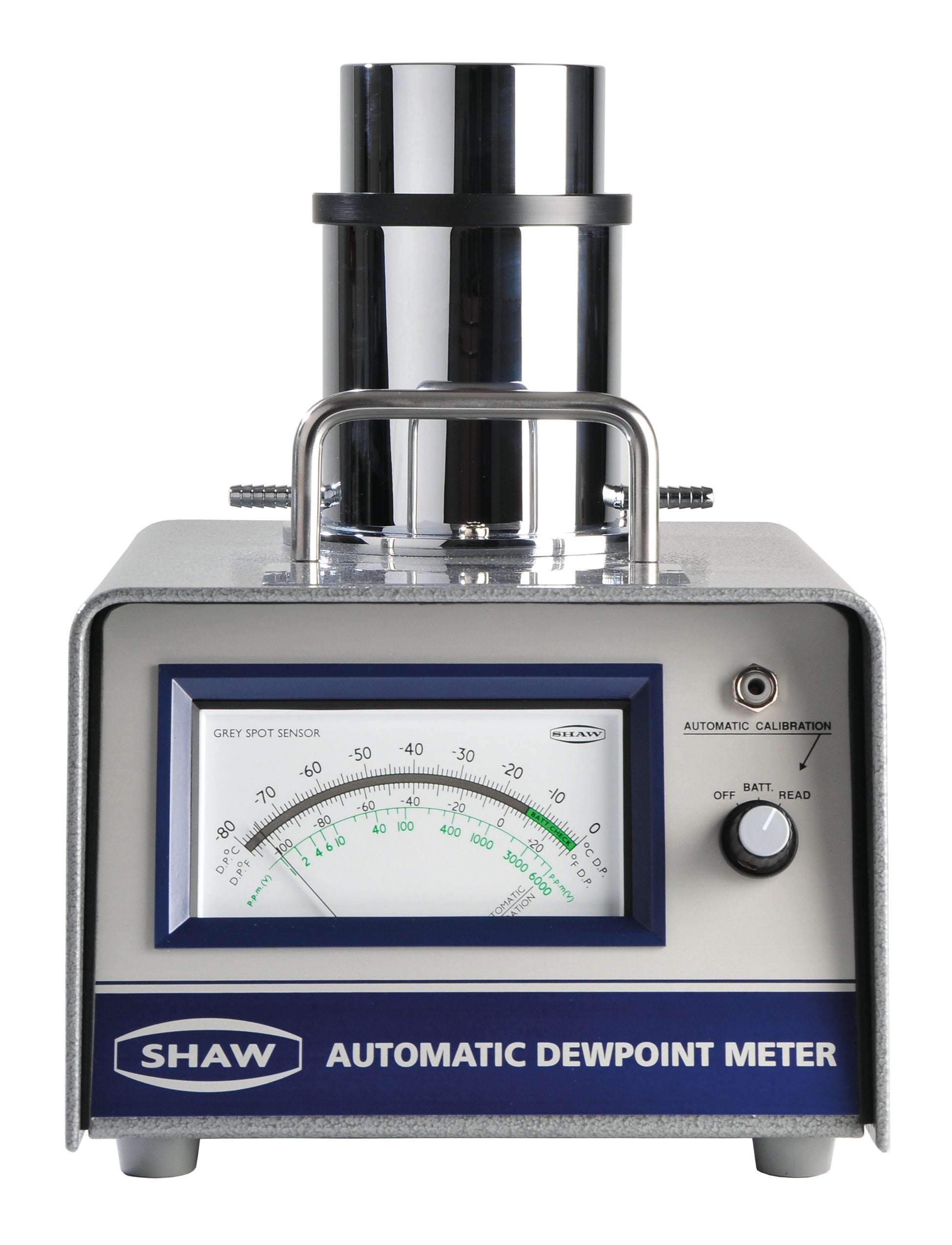

• Analogue dial display with readings in °C, °F and ppm(V) plus LCD indication

• Integrated desiccant dry-down chamber for fast measurement response

• AutoCal function for quick on-site span verification

• Powered by standard C-type battery

• Over 150 hours of continuous operation

• Rugged, self-contained and fully portable design

• Simple operation with minimal setup

• Supplied with calibration certificate traceable to national and international humidity standards via the National Physical Laboratory
