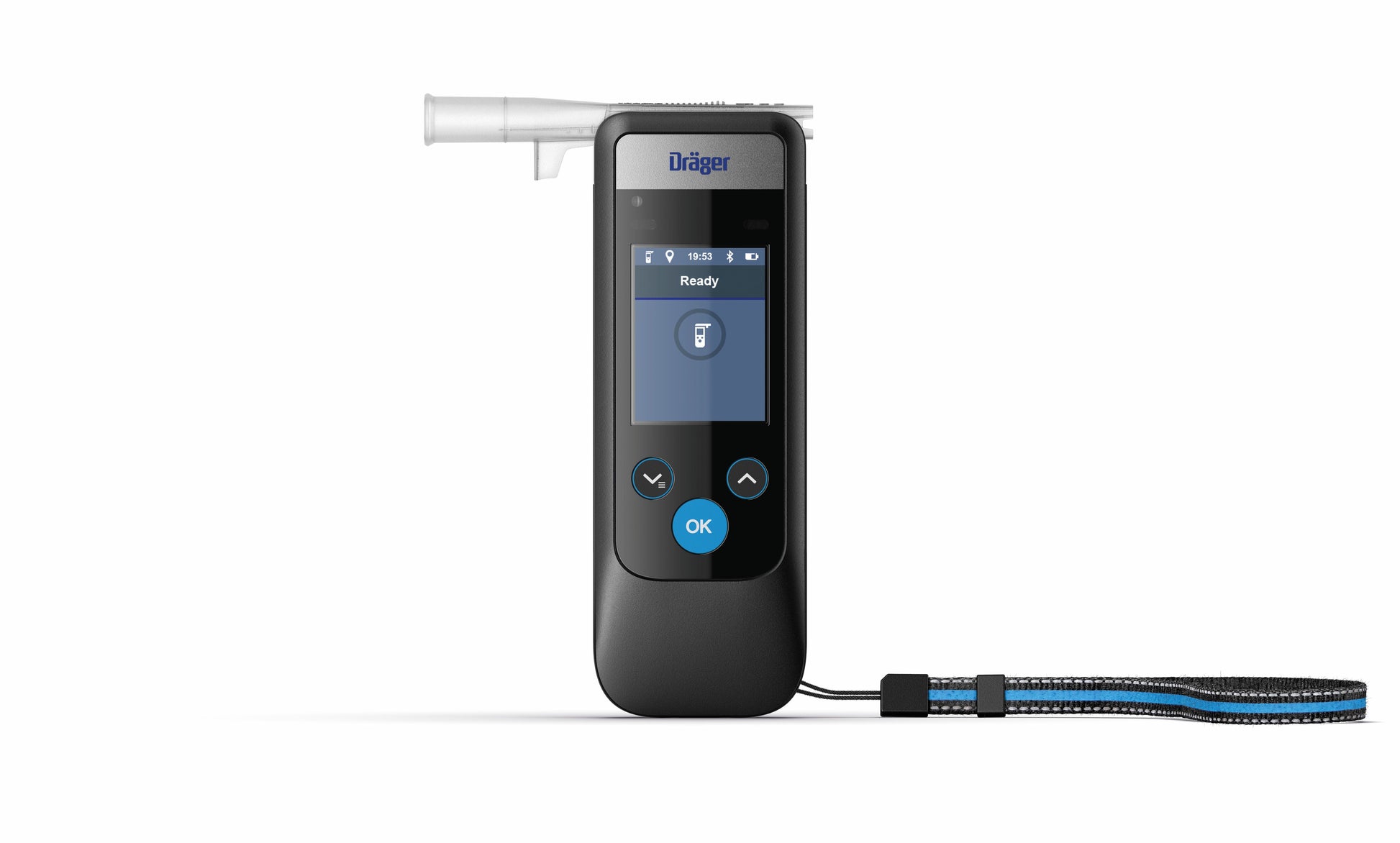

Dräger Alcotest 7000 (Standard Alkaline 3700400)

Price

£1,055.83 (Ex VAT)
£1,267.00 (Inc VAT)

A two in one device that can be used with a mouthpiece as a breathalyser for screening tests and providing a measurement of breath alcohol concentration, or with a funnel for passive pre-screening on entry to show whether alcohol is present.

The Alcotest 7000 requires only one calibration per year.

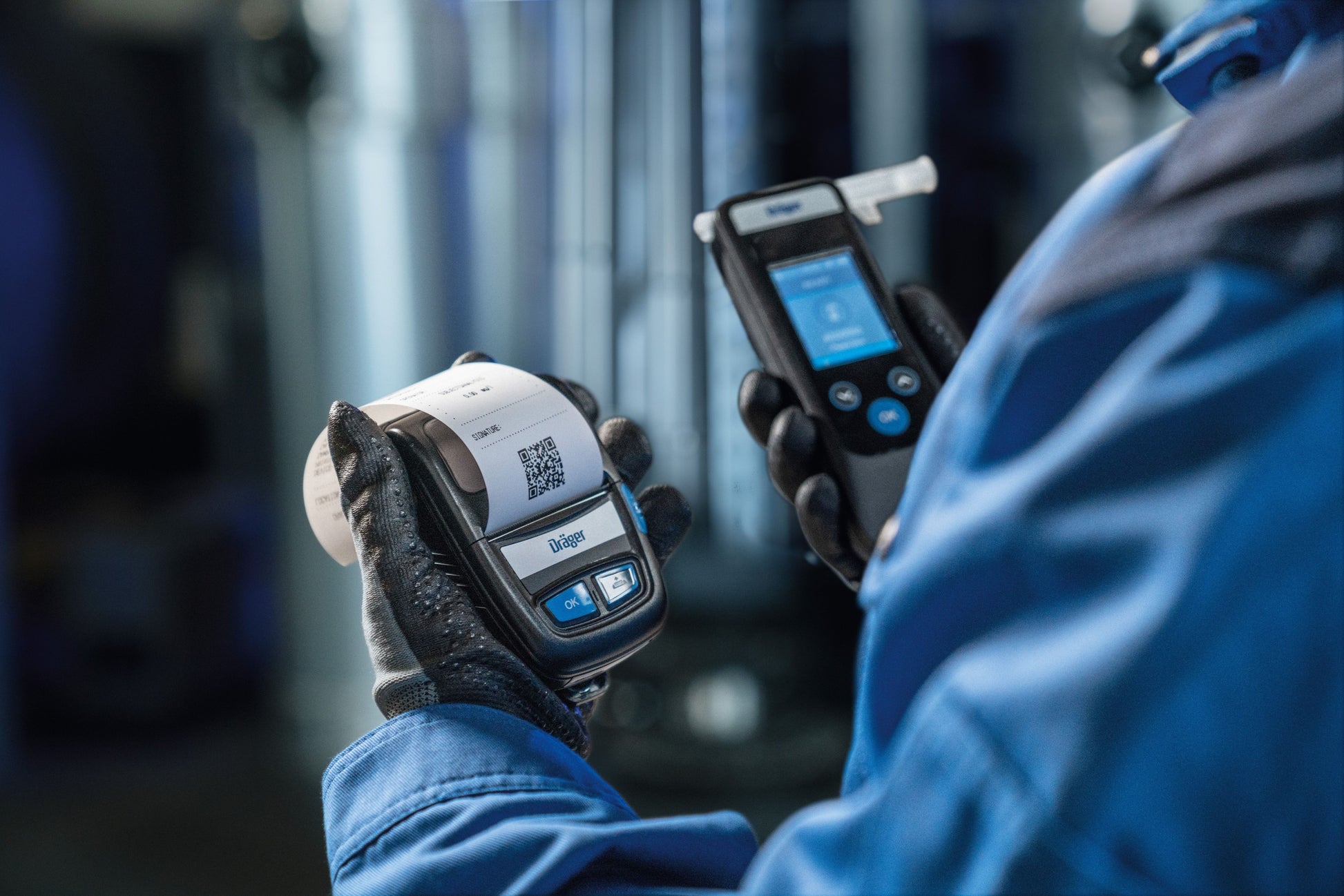

Further advantages include the extended temperature and measuring ranges, low maintenance requirements and various networking possibilities, both Bluetooth and USB cable can be used for printing and data management.

Summary –

Measuring Range: Breath alcohol concentration 0.00 to 2.50 mg/L (Ethanol mass per breath volume at 34 °C and 1013 hPa)

Start Up Time: Approx 3 sec after switching on

Standard Sampling: starts automatically when the minimum volume or predefined blowing time is reached.

Display of Results: After approx. 3 seconds (at 0 mg/l, room temperature) or approx. 10 seconds (at 0.5 mg / L, room temperature)

Memory: Stores latest 10,000 test results, with test number, date and time

Operating Temperature: 10 °C to +55 °C

Calibration Interval: 12 months (365 days)

Battery Set and Capacity:
Lithium model can be recharged via USB-C cable. Device can perform up to 5000 tests.
Alkaline model: can be used with: Alkaline batteries (single use) Lithium primary batteries (single use) NiMH (external rechargeable). Device can perform up to 1,500 tests

Consumables:
Mouthpieces: supplied in boxes of 100, 250 and 1000.
Hygienic Flow Funnels: supplied in boxes of 10

Approved to:

• EN 15964 – Breath alcohol test devices other than single-use devices: Defines essential requirements and test methods to ensure accuracy, reliability, and consistency in performance.
• EN 60068-2-27, EN 60068-2-6, EN 60068-2-64 – Environmental testing standards: Demonstrates the device’s resilience to vibration and mechanical shock, supporting dependable operation in challenging conditions.
• IP54 Ingress Protection Rating – Confirms protection against limited dust ingress and water splashes from any direction, ensuring continued functionality in varied operational environments.
• CE Marking (Directive 2014/30/EU) – Validates compliance with electromagnetic compatibility requirements under European legislation.
• NHTSA Approval – Certification by the U.S. National Highway Traffic Safety Administration, which also satisfies U.S. Coast Guard requirements.


Datasheet: Drager Alcotest 7000, 3700400
